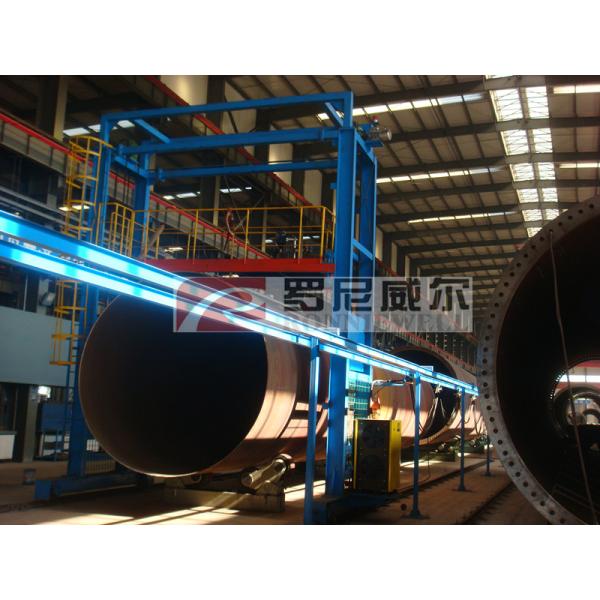

Monopipe welding platform / offshore wind tower welding platform / Monopile welding platform with tandem twin arc

I.Overview:

This machine is carefully designed by our factory. The working platform can be adjusted up and down to meet different welding height requirements. The working platform adopts synchronous driving on both sides to lift and lower. It can be stopped at any height within the stroke range. Welding operators can use the working platform to grow. Time welding work. It can guarantee the quality of welding, reduce the burden on operators and improve the safety of operators.

Ⅱ.Main technical parameter:

(Input power:415V/3P/50Hz)

Structure type: motorized travel and lifting;

Rated loading capacity: 4000kg;

Platform lifting speed: 1800mm/min;

Platform lifting stroke: 3250mm;

Platform bottom height range: 3350-6600m;

Platform travel speed: 700-7000mm/min;

Travel rail inner span: 6300mm (38Kg/m)

Travel motor power: 3Kw*2PCs

Lifting motor power: 4Kw*2Pcs

Ronniewell established since 2007 .We have built our expertise through years of experience. This enables us to produce equipment suitable for almost the entire spectrum of industrial welding and cutting needs.

Ronniewell's range of activities includes consultation, design, manufacture, install and provision of services mainly to Oil & Gas Installations, Constructors and Heavy Engineering and Steel Structure Fabricators.

Comprehensive range for sale:

• CNC flame/plasma cutting machine;
• Welding Rotators, Welding Turning Rolls;
• Welding Positioners & Welding Head and tail stocks;
• Welding Column & Boom Manipulators;
• Horizontal turntables;
• Welding Fit Up rotator & Growing Lines;
• Specialist handling welding rotators & welding positioners for Riser Lines, Pipe Shops, Pile Racks, Double Jointing, and Wind tower Production solutions.
• H-beam production lines;
• Edge milling machine.

Our vision is based on a long term strategy. This means that we are increasing our design and production capacity and we are strengthening our sales and after sales team to be able to serve you in the best possible way.
