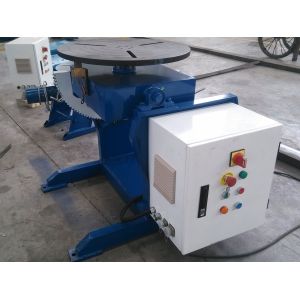

Manual Tilt Adjustable Rotating Speed 300kg Welding Positioner Foot
pedal Control
Brief introduction:
- Manual tilt welding positioner with safety work load 300kg.
- Table diameter 600mm with variable frequency rotating speed
0.15~1.5rpm.
Feature:
- The welding positioner worktable rotation is step-less frequency
adjustable to achieve a best welding speed .
- Table manual tilting 0~90 degree, big handwheel,smooth adjustment
procedure.
- Pendant controller for worktable rotating direction & speed
adjustment. With emergency stop button for safety operation.
- The welding positioner has extention function of linkage control
with other equipments to compose as automatic welding station.
- It has the advantages of compact volume, good appearance, light
weight and easy operation.
- Application industry is including pressure vessel, metallurgy,
electrical power, chemical industry, mechanical and metal structure
.
Technical parameters:
| Model | Rated loading (kg) | Rotary speed (rpm) | Overturning speed (rpm) | Overturning angle (degree) | Size of work table (mm)
|
|
| ZHBJ03 | 300 | 0.15~1.5 | manual | 0~90 | 600 |
| Model | Motor power (kW) | Way of setting | Max. Eccentric distance (mm) | Max. Distance of gravity center (mm) | Max. Turning diameter (mm) |
| Rotary | Overturning |
| ZHBJ03 | 0.18 | - | Variable frequency drive | 100 | 150 | 600 |
Description:
- The welding positioner is composed by working table, rotary
structure, overturn structure, main frame, electric control system,
pendant controller & foot pedal.
- It is mainly used to place the workpiece in the best position for
welding and assembling by worktable rotating & tilting.
- Welding positioner can be used for various automatic or manual
welding, butt welding or face welding of pipe, as well as welding
of shafts, discs, barrel, etc.
- Tailor made solution as per demanding acceptable as per request
What Ronniewell can do for Ronniewell customers:
1. Give you high quality products.
2. Give you five-star price.
3. Give you suitable recommendation.
4. Give you good after-service.
5. Give you professional technical guide.
6. Warmly welcome you visit our factory.
Points you may concern:
Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own
engineer team, who is good at design, develop & build special
solution catering for your individual requirement.
Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for
oversea trading. Depends on your location, combined transport by
rail and sea is also an option. Certainly railway transportation is
also acceptable if it is the most suitable approach.
After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole
machine quality. During this time, any issue proved because of the
machine flaw itself,we would take the whole responsibility of it.
Except of the guaranty period,technical advisory support is
available freely covering the whole using life of the machine.
Engineer service on user premises is also available for necessary.
